Brand: Shanghai Zanke Automation Co., Ltd.
Model: NP30C

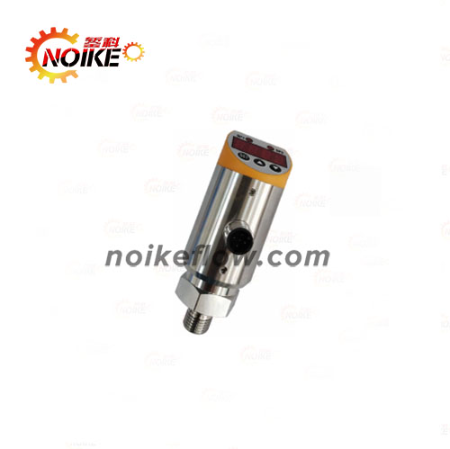

The NP30C electronic pressure sensor adopts ceramic or thin-film technology, ensuring high precision and durability of the sensor. It is equipped with on-site display, and the LED digital display shows on-site pressure and on-site setting menus.
The NP30C electronic pressure sensor adopts ceramic or thin-film technology, ensuring high precision and durability of the sensor. It features on-site display, with an LED digital display showing on-site pressure and on-site setting menus.
Gas-liquid dual-purpose; applicable to: slurry control, storage tank detection, liquid level control, filter blockage monitoring, leakage monitoring; also widely used in hydraulic and pneumatic occasions such as machinery and process control.
Shanghai Zanke NP30C: ϕ36, 100 (units not specified in the original text)
| Control Range | -0.1~0~100Mpa | Control Accuracy | ≤±0.5%FS | |
|---|---|---|---|---|
| Stability | <0.2%/year | Temperature Drift | ±0.02%FS/°C | |
| Display Mode | 4-digit nixie tube | Display Range | -1999~9999 | |
| Power Supply Range | 24VDC±20% | Maximum Current Consumption | <60mA | |
| Load Capacity | - | Output Type | PNP/NPN | |
| Response Time | <4ms | Switch Life | >1,000,000 times | |
| Protection Class | IP65 | Medium Temperature | -25~80℃ | |
| Ambient Temperature | -25~80℃ | Storage Temperature | -40~100℃ | |
| Vibration Resistance | 10g/0~500Hz | Impact Resistance | 50g/1ms | |
| Weight | 0.3kg | Interface Material | 304 stainless steel |
Note: 1bar = 1.02kg/cm² = 0.1Mpa
| NP30C | P | 001 | G14 | H | 2A | Q | Detailed Description |
|---|---|---|---|---|---|---|---|
| NP30C | NP30C series intelligent pressure switch | ||||||
| P | Positive pressure type | ||||||
| 001 | Setting range: 0....0.01bar (the original text has unclear characters, for reference only) | ||||||
| 002 | Setting range: 0....0.02bar (the original text has unclear characters, for reference only) | ||||||
| 005 | Setting range: 0....0.05bar (the original text has unclear characters, for reference only) | ||||||
| 010 | Setting range: 0....1.0bar (the original text has unclear characters, for reference only) | ||||||
| 025 | Setting range: 0....2.5bar (the original text has unclear characters, for reference only) | ||||||
| 060 | Setting range: 0.....60bar | ||||||
| 100 | Setting range: 0....100bar | ||||||
| 160 | Setting range: 0....16bar | ||||||
| 250 | Setting range: 0.....25bar (the original text has unclear characters, for reference only) | ||||||
| - | 科 NP30C | Setting range: 0......bar (the original text has missing characters, for reference only) | |||||
| 600 | Setting range: 0....600bar (the original text has unclear characters, for reference only) | ||||||
| G14 | Interface thread G1/4 | ||||||
| N12 | Interface thread G1/2 (the original text may have a typo, corrected based on common specifications) | ||||||
| M20 | Interface thread M20×1.5 | ||||||
| H | External thread interface | ||||||
| 1S | 1 switching output | ||||||
| 2S | 2 switching outputs | ||||||
| 1A | 1 analog output | ||||||
| 2A | 1 switching output + 1 analog output | ||||||
| 3A | 2 switching outputs + 1 analog output | ||||||
| Q | M12×1.5 connector & direct outlet |
*Note: Special process connections or connection methods can be customized as required.
Shanghai Zanke is a wholesale manufacturer of the intelligent pressure switch NP30C series. At this stage, the main products of Shanghai Zanke Co., Ltd. include flow switches, pressure switches, temperature switches, electromagnetic flowmeters, vortex flowmeters, turbine flowmeters, ultrasonic flowmeters, level (liquid) flowmeters and other instruments. Application industries: petroleum chemical industry, natural gas, machinery, electric power, metallurgy, building materials, food and pharmaceutical manufacturing, agriculture, environmental protection, etc. (Our company can customize instrument specifications according to users' special requirements and on-site working conditions, and provide installation and commissioning services.)
Well, that's all for today's introduction to the working principle, application fields, characteristics, installation requirements, use and maintenance of the intelligent pressure switch NP30C series. If you have any further questions, please feel free to contact us, and we will reply to you as soon as possible.
