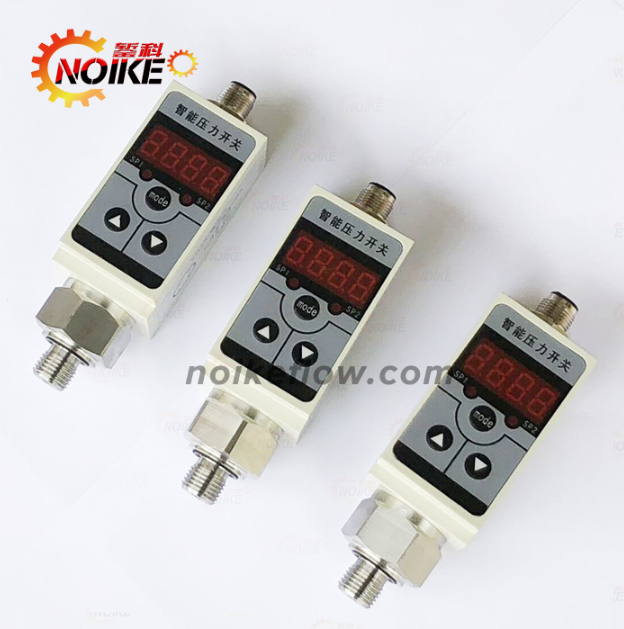

NY35 Series Intelligent Digital Pressure Switch

The NY35 Series Intelligent Digital Pressure Switch is a multifunctional pressure monitoring device that combines pressure measurement, digital display, programmable switching, and analog signal transmission into one compact instrument.

Designed for industrial automation, hydraulic systems, pneumatic equipment, and process control, the NY35 provides accurate pressure monitoring, flexible configuration, and reliable long-term operation.

Its integrated LED display and intelligent programming functions make installation and operation simple while improving system efficiency.

What Is a Digital Pressure Switch?

A digital pressure switch continuously monitors system pressure and automatically controls equipment when preset pressure thresholds are reached.

Compared with conventional mechanical pressure switches, the NY35 offers:

• Higher measurement accuracy

• Digital pressure display

• Programmable switching points

• Analog signal output

• Flexible parameter configuration

• Better long-term stability

It is ideal for modern industrial automation systems requiring both local monitoring and remote signal transmission.

Working Principle

The NY35 Series uses either a ceramic pressure sensor or a thin-film pressure sensor to accurately measure pressure.

The pressure signal is processed by an internal microprocessor and displayed on the integrated LED screen in real time.

Users can configure switch points, output signals, and display parameters directly from the on-device menu.

When the measured pressure reaches the programmed value, the switch output activates while the analog output simultaneously transmits the current pressure value to PLCs, HMIs, SCADA, or other control systems.

Key Features

High-Precision Sensor Technology

Available sensing technologies include:

• Ceramic Pressure Sensor

• Thin-Film Pressure Sensor

These technologies provide:

• High measurement accuracy

• Excellent long-term stability

• Fast response

• Outstanding durability

Integrated LED Display

The bright digital display provides:

• Real-time pressure values

• Switching status indication

• Easy parameter adjustment

• Improved visibility in industrial environments

Programmable Pressure Control

Users can configure:

• Upper switching point

• Lower switching point

• Analog output range

• Display parameters

• Pressure units (optional)

All settings are stored in non-volatile memory and remain unchanged after power loss.

Dual Output Function

The NY35 combines pressure control and signal transmission in one device.

Available outputs include:

Switching Output

Suitable for controlling:

• Pumps

• Compressors

• Solenoid Valves

• PLC Systems

• Alarm Devices

Analog Output

Optional industrial outputs include:

• 4–20 mA

• 0–10 V

These outputs enable continuous pressure monitoring by PLC, SCADA, DCS, or industrial automation systems.

Flexible Installation

The display housing rotates up to 270°, allowing optimal viewing from different installation positions.

The standard M12 locking connector simplifies electrical wiring while providing reliable industrial connections.

Technical Specifications

Mechanical Design

The NY35 is designed for demanding industrial environments.

Features include:

• Die-cast aluminum housing

• Compact industrial design

• Rotatable display

• Threaded process connection

• High mechanical durability

Various process connection materials and thread standards are available depending on model and application requirements.

Typical Applications

The NY35 Intelligent Digital Pressure Switch is suitable for measuring both gas and liquid pressure.

Typical applications include:

• Hydraulic Systems

• Pneumatic Systems

• Industrial Machinery

• Air Compressors

• Pump Control

• Filter Differential Monitoring

• Filter Clogging Detection

• Leakage Monitoring

• Process Control Systems

• Tank Level Monitoring

• Factory Automation

• OEM Equipment

Installation Recommendations

Before Installation

Always verify:

• Packaging integrity

• Correct product model

• Pressure range

• Power supply voltage

• Process compatibility

Installation Safety

For safe installation:

• Disconnect power before wiring.

• Tighten threaded connections using an appropriate torque wrench.

• Recommended maximum tightening torque: 50 N·m.

• Avoid applying excessive force to the housing.

Troubleshooting

If abnormal operation occurs:

• Stop using the device immediately.

• Disconnect the power supply.

• Inspect wiring and installation conditions.

• Contact qualified technical personnel for diagnosis and repair.

Unauthorized disassembly is not recommended.

Why Choose the NY35 Intelligent Digital Pressure Switch?

Compared with conventional mechanical pressure switches, the NY35 provides:

• High-precision digital measurement

• LED pressure display

• Simultaneous switching and analog output

• Programmable operating parameters

• 270° rotatable display

• Compact installation

• Excellent long-term reliability

• Low maintenance requirements

These advantages make the NY35 an ideal solution for modern industrial pressure monitoring and intelligent automation systems.
