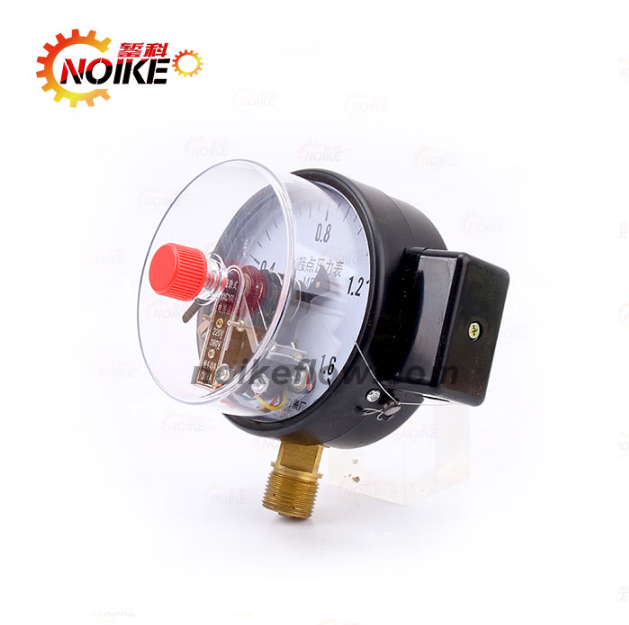

YNXC-100 Seismic-Resistant Magnetic Assist Electrical Contact Pressure Gauge

The YNXC-100 Electrical Contact Pressure Gauge combines accurate pressure indication with automatic electrical switching, making it an ideal solution for industrial pressure monitoring and process control.

Designed with a magnetic assist contact mechanism, the YNXC-100 provides reliable switching performance, excellent vibration resistance, and long service life in demanding industrial environments.

It is widely used in hydraulic systems, compressors, pumps, water treatment, petrochemical processing, and factory automation.

What Is an Electrical Contact Pressure Gauge?

An electrical contact pressure gauge measures pressure while simultaneously controlling electrical circuits through preset switching points.

When the pressure reaches the configured upper or lower limit, the internal electrical contacts automatically open or close, allowing the gauge to control equipment such as:

• Pumps

• Compressors

• Solenoid Valves

• PLC Systems

• Alarm Devices

• Industrial Controllers

Unlike a standard pressure gauge, it provides both visual pressure indication and automatic process control.

Working Principle

The YNXC-100 uses a precision Bourdon tube pressure sensing mechanism combined with a magnetic assist electrical contact system.

As pressure changes, the Bourdon tube drives the pointer across the dial.

When the pointer reaches a preset switching point, the magnetic-assisted contact mechanism activates, producing a stable switching signal with reduced arcing and improved contact reliability.

The magnetic assist design significantly extends contact life compared with conventional mechanical contact gauges.

Key Features

Seismic-Resistant Construction

Designed for harsh industrial environments with continuous vibration.

Ideal for:

• Hydraulic Equipment

• Air Compressors

• Industrial Machinery

• Pump Stations

• Manufacturing Plants

Magnetic Assist Contact System

Compared with conventional electrical contact gauges, magnetic-assisted contacts provide:

• Faster switching

• Reduced contact wear

• Improved switching reliability

• Longer electrical service life

• Stable operation under vibration

Accurate Pressure Indication

• Large 100 mm dial

• Clear and easy-to-read scale

• High visibility in industrial environments

Dual Monitoring and Control

The instrument performs both:

• Pressure Measurement

• Electrical Switching Control

Reducing the need for separate pressure switches.

Structural Configuration

Mechanical Connection

Standard process connection:

• M20 × 1.5

Optional connections include:

• 1/2" NPT

• 3/8" NPT

• Customized Process Threads

Electrical Specifications

Contact Operating Modes

The YNXC-100 supports multiple switching configurations.

Upper & Lower Limit Control

Normally Open (NO) and Normally Closed (NC) contacts operate independently according to the preset upper and lower pressure limits.

Suitable for automatic pressure control systems.

Upper Limit Alarm

Only the upper pressure limit activates the selected contact.

Ideal for overpressure protection.

Lower Limit Alarm

Only the lower pressure limit activates the selected contact.

Suitable for low-pressure alarms and pump protection.

Environmental Performance

Designed for reliable operation in demanding industrial conditions.

Features include:

• Excellent vibration resistance

• Stable switching performance

• Wide voltage compatibility

• Reliable operation under continuous pressure cycling

Electrical ratings:

• Instantaneous Current: ≤1 A

• Continuous Current: ≤0.6 A

Customization Options

To meet different industrial requirements, the YNXC-100 can be customized with:

Mechanical Options

• Stainless Steel Housing

• Multiple Thread Connections

• Customized Pressure Ranges

Electrical Options

• AC 220 V

• AC 380 V

• DC 24 V

• PLC-Compatible Outputs

• VFD-Compatible Control

Contact Materials

Available contact materials include:

• Silver Alloy Contacts

• Gold-Plated Contacts

Different contact materials are recommended according to switching frequency and electrical load.

Typical Applications

The YNXC-100 Electrical Contact Pressure Gauge is widely used in:

• Hydraulic Systems

• Air Compressors

• Pump Control Systems

• Water Treatment Equipment

• Petrochemical Plants

• Industrial Boilers

• Manufacturing Machinery

• Refrigeration Systems

• HVAC Equipment

• Process Automation

• OEM Equipment

Why Choose the YNXC-100 Electrical Contact Pressure Gauge?

Compared with conventional pressure gauges, the YNXC-100 offers significant advantages:

• Simultaneous pressure indication and automatic control

• Magnetic-assisted switching for longer contact life

• Excellent vibration resistance

• Large, easy-to-read dial

• Flexible switching configurations

• Wide voltage compatibility

• Low maintenance requirements

• Reliable industrial performance

These features make the YNXC-100 an excellent solution for industrial pressure monitoring and automatic process control.
