Product Overview‌

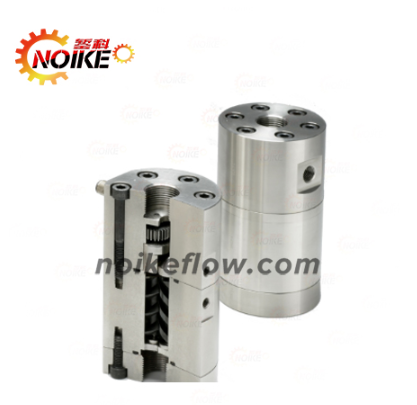

The ‌stainless steel helical gear flow meter‌ is a high-resolution, robust positive displacement flow meter offering:

Wide measurement range

Low pressure drop

Cost-effective performance

Ideal for Handling:‌

Highly filled fluids (e.g., polyurethanes, polymers)

Abrasive media (e.g., adhesives, sealants)

Heavy fuel oils

Technical Specifications‌

1. ‌Performance‌

Accuracy‌: ±0.5% of reading (maintained under varying viscosity conditions)

Materials‌:

Body: 303 stainless steel

Bearings: Tungsten carbide (corrosion-resistant)

Optional: Hard-coated gears

Connection Types‌: BSPP or NPT threaded ports

2. ‌Operational Parameters‌

Viscosity Range‌: Suitable for wide viscosity variations

Pressure Drop‌: Lower than conventional flow meters

Flow Range‌: Extensive size options available

Key Applications‌

Sealant/Adhesive Dispensing‌: Single/multi-component systems

Paint Operations‌:

Recycling and environmental tracking

Circulation/supply systems

High-solid/filled material spraying

Industrial Processes‌:

Material manufacturing/monitoring

Resin application systems

Batching operations

Design Advantages‌

Consistent Accuracy‌:

Maintains ±0.5% accuracy regardless of viscosity changes.

Durable Construction‌:

Stainless steel body with tungsten carbide bearings

Optional hardened gear variants

Operational Flexibility‌:

Low pressure drop

Broad flow range coverage

Proven Reliability‌:

Industry-recognized longevity with ready-to-install electronics.
