Brand:‌ Shanghai Zanke Automation Co., Ltd.

Model:‌ NT50EX

Product Description:‌

Product Overview‌

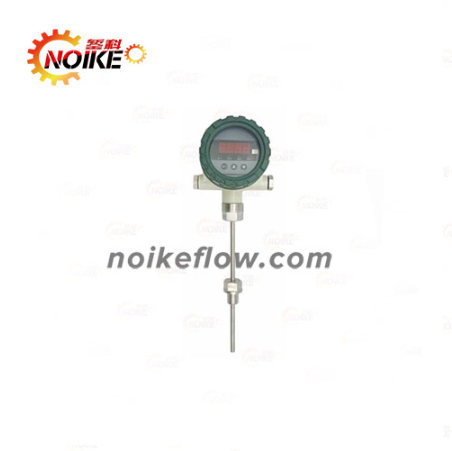

The NT50EX Intelligent Temperature Controller is an integrated instrument combining temperature transmission, on-site digital temperature display, and explosion-proof functionality. Its temperature-sensing probe utilizes high-resistance platinum RTDs or thermocouples, with specially processed electronic circuits to ensure accurate measurement and display of on-site temperature values. It supports multiple signal output modes, including:

4–20mA

0–5V

0–10V

1–5V

RS485

for long-distance signal transmission.

Applications‌

Designed for industries requiring temperature measurement, signal transmission, display, alarm, and control, such as:

Petroleum

Chemical

Metallurgy

Power plants

Hydrological monitoring

Defense

Scientific research

Product Features‌

Parameter Customization‌: Flexible panel settings with upper/lower limit indicators.

Multi-Control Points‌:

Standard: 2 control points (expandable to 4)

Supports independent alarm value and hysteresis settings for high/medium/low-temperature control.

Precision Output‌: Current resolution up to 3μA; RS485 communication with persistent connectivity.

Anti-Interference‌: RF interference suppression for stable data transmission.

Lightning Protection‌: Enhanced surge protection for operational safety.

Calibration‌: Fully automated digital calibration ensures long-term accuracy (±0.1%/year FS) and stability.

Robust Design‌: Integrated structure improves corrosion resistance, shockproofing, and reliability.

Technical Parameters‌

Parameter Specification

Measuring Range -200 to 450°C (customizable)

Output Signal Switch signal

Load Resistance ≤500Ω

Power Supply 24VDC or 220VAC

Stability 0.1%/year FS

Temperature Coefficient ≤0.05%/°C

Additional Error ≤±0.005%/V

Explosion Proof ExdⅡCT6

Protection Class IP65

Power Consumption ≤5W

Accuracy 0.5%

Relative Humidity ≤80%

Mounting Thread Optional

NT50EX Series – OEM Manufacturer‌

Shanghai Zanke specializes in wholesale production of the NT50EX Series. Current product lines include:

Flow/Pressure/Temperature Switches

Electromagnetic/Vortex/Turbine/Ultrasonic Flow Meters

Level/Liquid Flow Meters

Industries Served:‌

Oil & gas, machinery, power, metallurgy, food/pharmaceutical, agriculture, environmental protection, etc. (Custom solutions and on-site installation/debugging available.)
