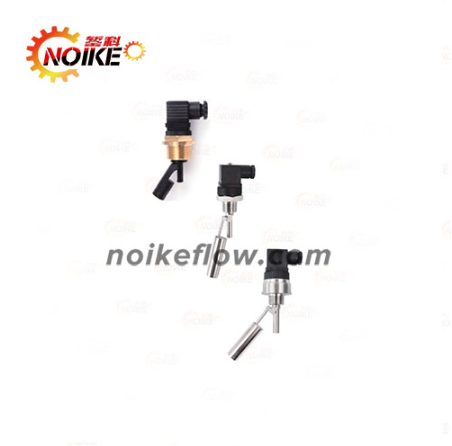

Product Name:‌ Float Level Switch NK004 Series

Brand:‌ Shanghai Zanke Automation Co., Ltd.

Product Description:‌

A hermetically sealed non-magnetic stainless steel tube contains a reed switch, while the float is equipped with an annular magnetic ring. As the liquid level rises or falls, the float moves accordingly, triggering or releasing the reed switch inside the tube to generate a switching signal. It can be installed at the top or bottom, featuring a compact and rugged structure, reliable performance, excellent repeatability, long service life, and high-temperature resistance.

Applications:‌

Liquid level measurement for media with a density ≥0.75 g/cm³.

Technical Parameters:‌

Max Pressure:‌ 5 bar

Medium Temperature:‌ -10°C to 130°C

Medium Density:‌ ≥0.75 g/cm³

Output Options:‌ Normally Open (NO), Normally Closed (NC), or NO+NC

Contact Type:‌ Reed switch

Contact Rating:‌ 250V AC, 5A

Protection Rating:‌ IP65

Wiring Options:‌ Direct cable attachment or plug-in connector

Materials:‌ Brass / POM engineering plastic / Stainless steel

Additional Notes:‌

Includes applicable media diagrams, wiring diagrams, and dimensional drawings (mm).

Customizable specifications based on user requirements and site conditions.

Disclaimer:‌

This content is for reference only. For detailed inquiries, please contact our technical staff.
