Product Name:‌ WP-DJ Electrode Level Controller

Brand:‌ Shanghai Zanke Automation Co., Ltd.

Product Description:‌

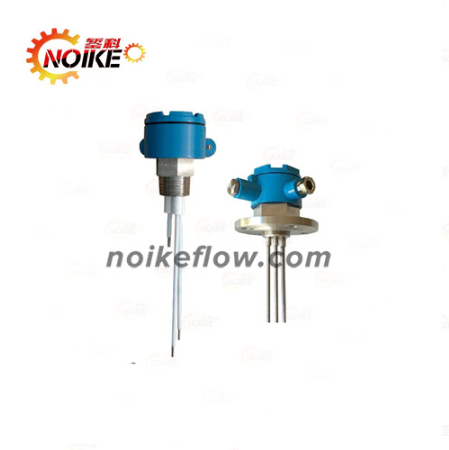

The WP-DJ electrode level controller is available in two installation configurations: integrated type and split type. The integrated type incorporates the control circuit board directly into the junction box of the level detection electrode, forming a unified structure. The split type features separate installation of the controller and detection electrode, with compact controller designs suitable for either DIN rail mounting inside control cabinets or panel mounting.

Key Features:‌

Compact Design:‌ Space-saving controller ideal for high-density cabinet installations

Industrial-Grade Electrodes:‌ Robust construction with customizable length combinations

Local Level Control & Alarm:‌ Provides direct monitoring and alert functionality

Valve Status Detection:‌ Additional capability to monitor regulating valve operation without leakage

Configuration Options:‌

Housing Materials:‌

Plastic enclosure

Aluminum alloy explosion-proof enclosure (for hazardous environments)

Connection Fittings:‌

Nylon adapters

Stainless steel adapters

Functional Applications:‌

When integrated with pumps, the system enables automatic liquid filling/draining control for tanks or sumps. Electrode configurations support various process requirements:

1-Electrode:‌ Metal tank level alarms/pipeline leak detection (using tank as common terminal)

2-Electrode:‌ Non-metallic tank/sump single-point alarms or non-metallic pipeline leak detection

3-Electrode (Standard):‌ Liquid filling/draining control (e.g., water supply/drainage systems with pump automation)

4-Electrode:‌ Adds high/low limit alarms to prevent overflow or dry-running conditions

Technical Specifications:‌

Installation:‌ DIN rail or panel mount (split type)

Electrode Options:‌ 1/2/3/4-electrode configurations

Environmental Adaptation:‌ Available in standard and explosion-proof versions

Supplementary Documentation:‌

Includes dimensional drawings (mm), wiring diagrams, and selection tables. Custom solutions available based on specific application requirements.

Disclaimer:‌

This content is for reference only. For detailed inquiries, please contact our technical staff.
