Product Name:‌ WP-DJ Electrode Level Controller

Brand:‌ Shanghai Zanke Automation Co., Ltd.

Model:‌ Integrated Type / Split Type / Flange (Additional Cost) / Electrode (Additional Cost)

Product Description:‌

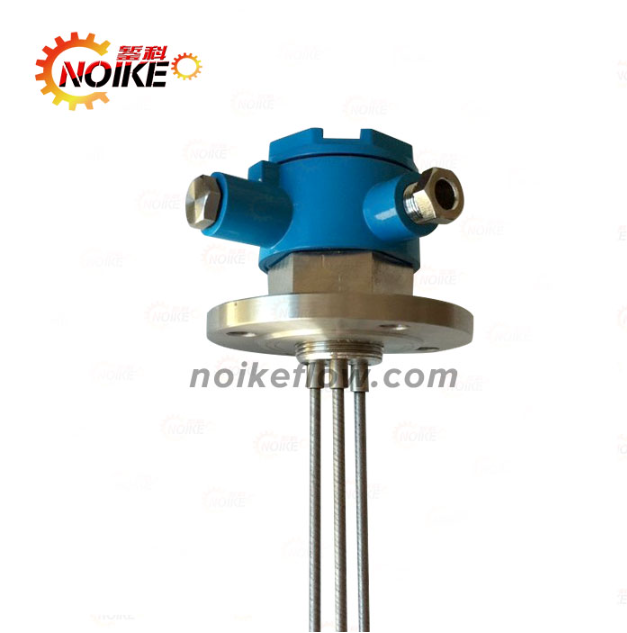

The stainless steel electrode-type integrated level switch consists of two components: level detection electrodes and a controller. When combined with pumps, it enables automated liquid filling/draining control for tanks or reservoirs.

System Configurations:‌

Integrated Type:‌

Control circuitry embedded within the electrode junction box

Split Type:‌

Separate controller and electrode units

Compact controller supports:

DIN rail mounting (control cabinet)

Panel mounting

Electrode Variants:‌

Feature Specification

Housing Options‌ Plastic / Explosion-proof aluminum alloy

Connection Types‌ Nylon fittings / Stainless steel fittings

Electrode Configurations‌

• 1-electrode Metal tank leakage alarms (tank as common terminal)

• 2-electrode Non-metal tank single-point alarms

• 3-electrode Standard liquid filling/draining control

• 4-electrode Added high/low limit alarms (overflow/dry-run prevention)

Key Features:‌

Compact controller design for dense DIN rail installation

Industrial-grade electrodes with modular length adjustment

Local level control/alarm functions

Valve status detection capability (leak verification)

Technical Parameters:‌

Power Supply:‌ 220VAC or 24VDC

Relay Output:‌ 220VAC/1A or 24VDC/1A

Environmental Conditions:‌

Temperature: -20℃ to 70℃

Humidity: ≤85%RH

Electrode Specifications:‌

Material: 304 stainless steel (custom materials available)

Fluid Contact Temperature:

Nylon: -20℃ to 70℃

304SS: -20℃ to 180℃

Connection: G1½", M27×2 thread, or flange

Media Requirements:‌

Minimum conductivity: 20μS/cm (compatible with distilled water)

Disclaimer:‌

This content is for reference only. For detailed inquiries, please contact our technical staff.
