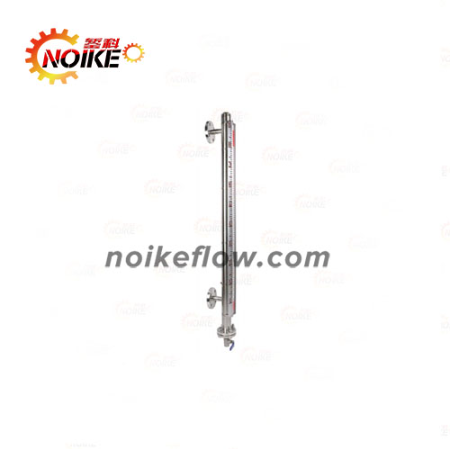

Product Name:‌ LM400 Magnetic Level Gauge

Brand:‌ Shanghai Zanke Automation Co., Ltd.

Product Description:‌

The LM400 series magnetic level gauge consists of a measuring body, indicator column (with red/white magnetic flags), float, and flange cover, designed for liquid level measurement in various containers. Suitable for high-temperature, explosion-proof, corrosive, and food-grade applications.

Working Principle:‌

Utilizes top-mounted or side-mounted installation

Magnetic coupling system transfers liquid level changes to:

Visual indicators (rotating flags)

Level switches (alarm contacts)

Transmitters (4-20mA output)

Float movement drives magnetic flags to rotate 180° for clear level indication

Key Features:‌

Category Specification

Measurement‌ Continuous level indication with no blind zones

Construction‌ Fully isolated design between medium and indicator

Materials‌ Available in stainless steel, PTFE, or other corrosion-resistant alloys

Options‌ Integrated with:

• Alarm switches

• 4-20mA transmitters

• Explosion-proof certifications

Technical Parameters:‌

Pressure Rating:‌ Up to 16MPa

Temperature Range:‌ -196°C to +450°C

Accuracy:‌ ±10mm

Output Signals:‌

Switch: SPDT 250VAC/5A

Analog: 4-20mA with HART protocol

Typical Applications:‌

Chemical/petrochemical processing

Power generation boilers

Food & pharmaceutical storage

Wastewater treatment

Installation Notes:‌

Requires vertical mounting (±3° tolerance)

Minimum fluid density: 0.45g/cm³

Avoid strong magnetic interference

Note:‌

This content is for reference only. For detailed inquiries, please contact our technical staff.
