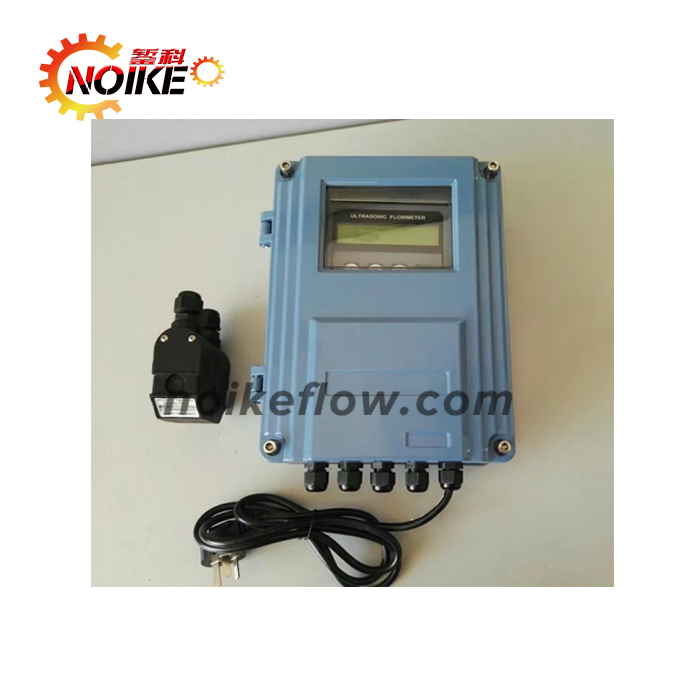

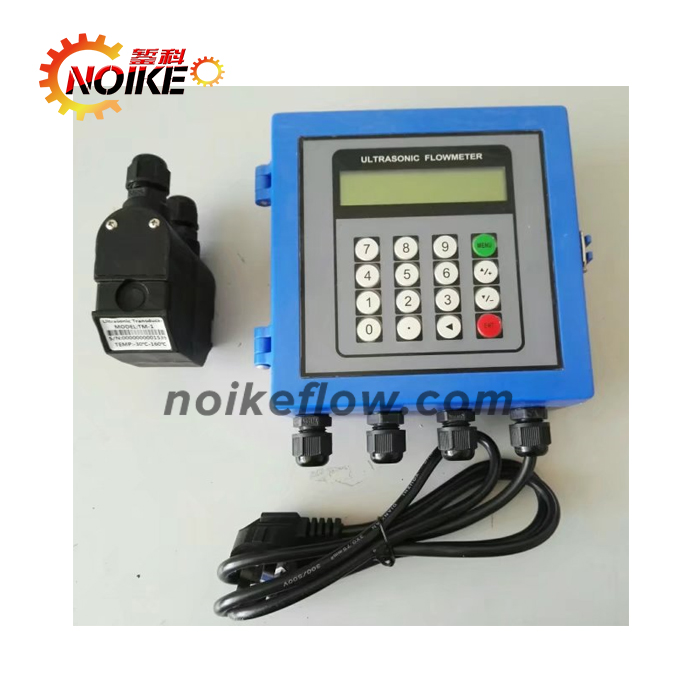

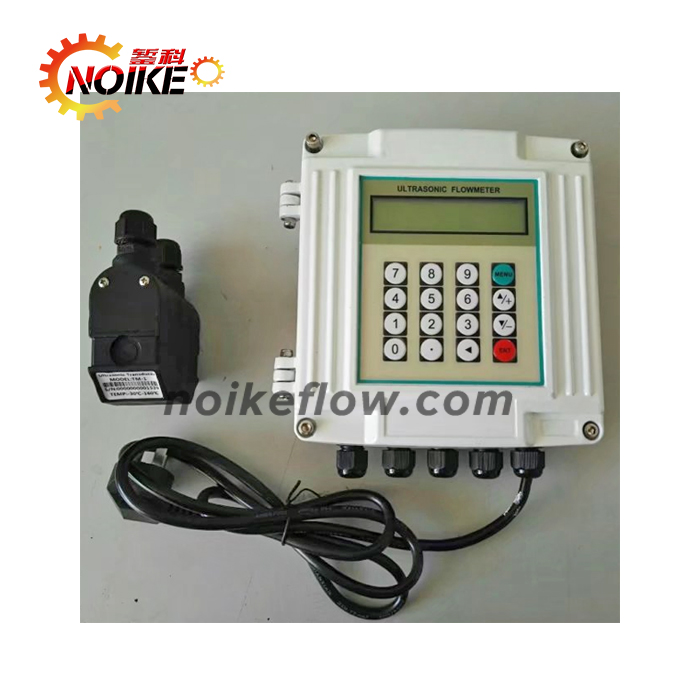

Portable Ultrasonic Liquid Water Flow Meter NG800

  • Brand:ZANKE
  • Model:NG 800
  • Description:NG800 ultrasonic flowmeter has been manufactured with patent technologies and is equipped with more functions and advanced performance than our previous versions. NG800 flowmeter incorporates the latest ICs manufactured from the famous semi
  • Online Consultation
NG800 ultrasonic flowmeter has been manufactured with patent technologies and is equipped with more functions and advanced performance than our previous versions. NG800 flowmeter incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips, Maxim, TI, and Xilinx It employs apatent balanced lower voltage multi-pulse igniting circuit which increases the anti-interference ability magnificently so that the flow meter will work properly even in demanding industrial environments such as those with power frequency transverter working nearby.

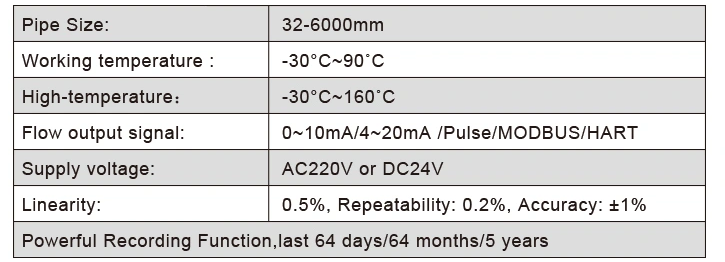

Basic parameters


Specificate of Ultrasonic flow meter
Items Parameter
Host Principle Transit- time ultrasonic flowmeter
Accuracy ±1%
Display

2X20 character LCD with backlight, support the language of

Chinese, English

Signal
Output

1 way 4~20mA output, electric resistance 0~ 1K,

Accuracy 0.1%(optional)

1 way OCT pulse output(Pulse width 6~1000ms,

Default is 200ms)

4 way Relay output
Data Interface

Insulate RS485 serial interface, upgrade the

Flowmeter software by computer, support the MODBUS

Special Cable

Twisted-pair cable, generally, the length under 50 meters; Select the RS485,

Transmission distance can over 1000m

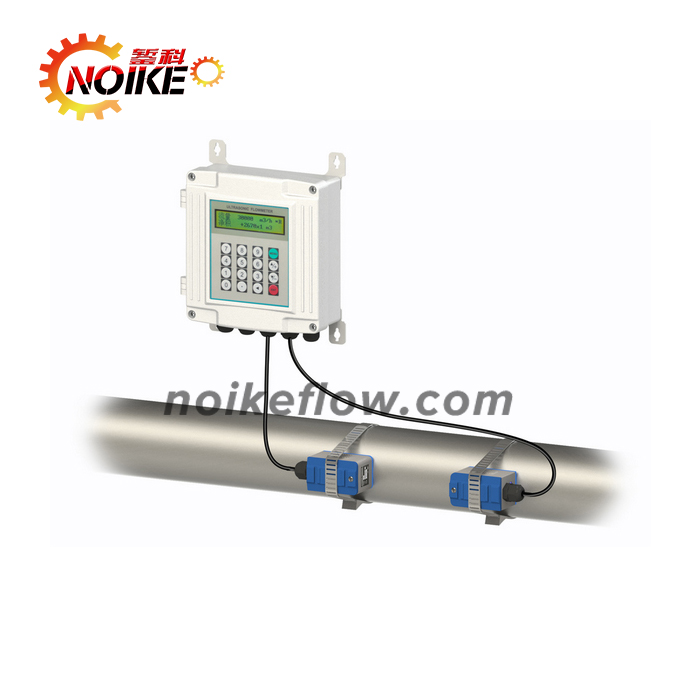

Pipe Installation

Condition

Pipe Material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,

Aluminum, Glass steel product, liner is allowed

Pipe Diameter DN32~6000mm
Straight Pipe

Transducer installation should be satisfied: Upstream10D,

Downstream 5D, 30D from the pump

Work environment Protection grade Host: IP67; Flow sensor: IP68
Temperature Host: -20~60; Flow sensor: -30~ 160
Humidity

Host: 85%RH; Flow sensor: Can measure under water,

Water depth^2m (tansducer sealed glue)

Power Supply DC8~36V or AC85~264V
Power Consumption 1.5W
Dimension 132*150*85mm(host)
Order information: Pipe size: DN15~700mm, Output: 4-20mA

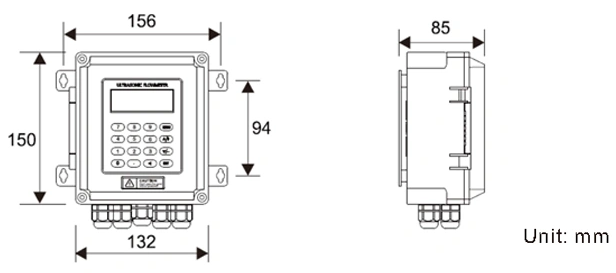

Dimension

Application range

Then NG800 flow meter can be virtually applied to awide range of measurements. The measured pipe ranges 15-6000mm. Because the instrument and transducers are non-contacting and have no moving parts; The flow meter can not be affected by system pressure, fouling or wear.

Water, industrial sewage, sea water /Acid amp;Alkali Liquid/Various oil/Feed water and drainage/Detection of water resources/Petrochemical/Food and pharmaceutical industry/Power plant/Metallurgical mines/Operation and maintenance of ship/Monitoring and management of water saving/Papermaking and pulping/Leak detection/Heating/Manufacturing of pump, boiler, cooling tower/Management of flow and heat, control network system/Patrol, tracing and collection of flow.
