Product Definition‌

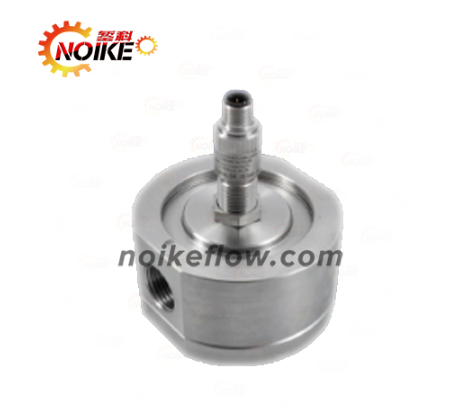

The ‌imported oval gear flow meter‌ (also known as a positive displacement flow meter) is a high-precision industrial-grade device designed for clean process fluid applications.

Technical Specifications‌

1. ‌Core Parameters‌

Sizes‌: ¼" to 4"

Flow Range‌: 0.13 GPH to 320 GPM

Materials‌: Stainless steel SS316L

Power Supply‌: 5–26 VDC

2. ‌Performance Metrics‌

Accuracy‌: 0.5% (standard), 0.2% (high-precision)

Temperature Range‌:

Standard: -40°C to +80°C

Customizable for high-temperature applications (consult engineers)

Pressure Rating‌:

Standard: 400 BAR

Customizable for high-pressure applications (consult engineers)

3. ‌Output Signals‌

Primary‌: Square wave pulse

Optional‌:

Analog current output

RS485/RS232 with Modbus protocol

Working Principle‌

Fluid-Driven Mechanism‌:

Liquid flow drives the measurement gears based on the gear motor principle.

Signal Generation‌:

One signal is emitted per gear tooth rotation, corresponding to a fixed geometric volume.

Dual non-contact sensors sample gear movement for bidirectional flow detection.

Bearing System‌:

Low-friction ball bearings ensure contactless operation.

Pressure-resistant non-magnetic separator isolates the sensor compartment.

Signal Processing‌:

A preamplifier converts raw signals to square waves.

Two-channel sampling enhances resolution and flow direction identification.

Compatible Fluids‌

Category‌ ‌Examples‌

Fuels‌ Diesel, ethanol blends, biodiesel

Chemicals‌ Polyols, isocyanates, epoxy resins

Lubricants‌ Hydraulic oils, grease additives

Industrial‌ Inks, paints, adhesives, sealants

Aqueous‌ Deionized water, glycol solutions

Typical Applications‌

Fuel Systems‌:

Biodiesel/ethanol blending

Marine fuel metering

Industrial Processes‌:

Polyurethane foam mixing

Hydraulic oil measurement

Solvent blending/distribution

Precision Tasks‌:

Test bench calibration

Polymer production monitoring
