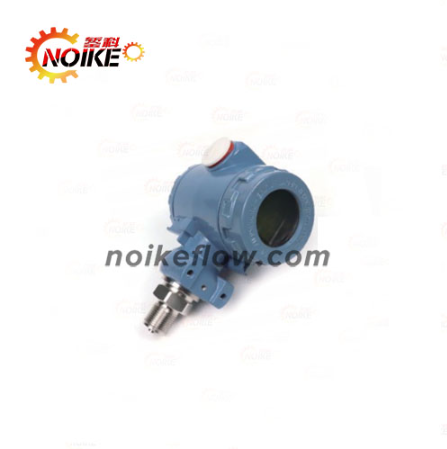

In numerous fields of industrial production, accurate measurement of the pressure of liquids and gases is crucial for ensuring production safety and efficiency. The PM100 series pressure transmitter launched by Shanghai Zanke Automation Co., Ltd., with its excellent performance and wide applicability, has become an ideal option in the field of industrial pressure measurement.

Core Principles and Structural Advantages

The core of the PM100 series pressure transmitter lies in its pressure sensor with an isolation diaphragm. This component has undergone computer automatic detection and laser trimming processes, achieving zero point and sensitivity temperature compensation within a wide temperature range, thus ensuring measurement stability.

When the pressure of the measured medium acts on the sensor diaphragm, the diaphragm produces a tiny displacement proportional to the pressure. After the electronic circuit captures this displacement, it converts it into a standard industrial measurement signal. Its structural design has significant highlights:

• The adoption of application-specific integrated circuits and surface mounting technology improves the integration and reliability of the device.

• The robust metal housing can adapt to various harsh working environments, and the 316L stainless steel isolation diaphragm ensures corrosion resistance to different media.

• Multiple display units are available for selection to meet reading needs in different scenarios.

Wide Range of Application Scenarios

The PM100 series pressure transmitter has a very wide range of applications. It can measure various liquids and gases and play an important role in many industrial fields such as petroleum, chemical industry, electric power, metallurgy, pharmaceuticals, and food. Whether it is a high-temperature and high-pressure chemical reaction kettle or a precision food processing pipeline, it can stably and reliably provide pressure data.

Detailed Technical Parameters

Basic Performance Parameters

• Measurement range: Covering -100KPa to 100MPa, with accuracy grades of 0.5%FS and 0.2%FS available.

• Repeatability: ≤0.01% of full scale; Measurement hysteresis: ≤±0.01% of full scale; Stability: <0.01% per year.

• Temperature effect: Performs well and can maintain measurement accuracy in complex temperature environments.

• Output signal: Supports various signal types such as 4...20mA, 0..10V, and HART.

• Working voltage: 12..36VDC; Medium temperature: -30...80°C to 400°C; Ambient temperature: -30..85°C.

• Response time: <5ms; Load resistance: ≤1KΩ; Protection class: IP65; Housing material: Cast aluminum.

Range Codes

Different measurement requirements correspond to different range codes, with separate subdivisions for gauge pressure and absolute pressure:

• For gauge pressure, the range codes vary from 0...50mbar (code B005) to 0...2500bar (code B2500).

• For absolute pressure, it covers ranges such as 0...50mbar (code A005) to 0...25bar (code A25).

• In addition, there are range codes for bidirectional or negative pressure measurement, such as -10...10KPa (code F10) and -50...50KPa (code F50).

Flexible Selection and Customization

The PM100 series pressure transmitter offers a variety of selection options, which can be combined according to actual needs:

• Pressure type: Gauge pressure (B) or absolute pressure (A).

• Output signal: Including 4...20mA (A), 0...5V (V05), 1...5V (V15), 0..10V (V01q), and HART/RS485 (HR), etc.

• Accuracy grade: 0.5%FS (5) or 0.2%FS (2).

• Connection method: Various thread specifications are available, such as M20*1.5 external thread (M20M) and G1/4 external thread (G14M).

• Display function: With display (0) or without display (1).

• Explosion-proof performance: Explosion-proof (ExdllC T4) (E) or non-explosion-proof (S).

Meanwhile, as a wholesale manufacturer of the PM100 series pressure transmitters, Shanghai Zanke Automation Co., Ltd. can also customize instrument specifications according to users' special requirements and on-site working conditions, and provide installation and commissioning services. In addition to pressure transmitters, the company also produces various instruments such as flow switches, electromagnetic flowmeters, and turbine flowmeters, which are widely used in fields such as natural gas, machinery, building materials, agriculture, and environmental protection, providing comprehensive measurement solutions for all links of industrial production.

Whether it is a standard model or a customized product, the PM100 series pressure transmitter, with its high accuracy, high stability, and strong adaptability, has become a reliable partner in industrial pressure measurement.
